Panoramic HD IR

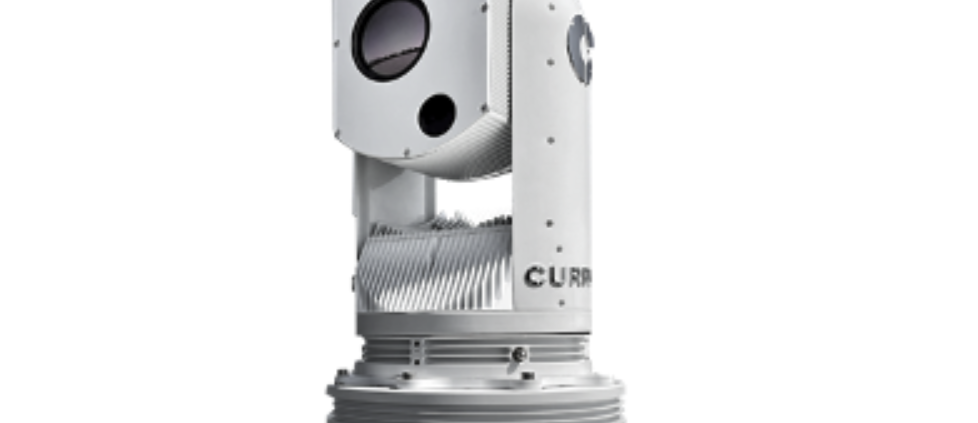

Current Scientific’s Panoramic HD IR consists of a high definition thermal camera array integrated with a gyro-stabilized EO/IR System. These systems provide a previously unavailable level of situational awareness with long-range object and threat verification. Available in multiple configurations and with a full frame rate of 30 Hertz, it can be used by operators who prefer and require more information to aid human decisions. It can also be integrated into an AI decision-based infrastructure. Objects detected in the panoramic image can be zoomed in on, providing critical details. Output video can display full 360˚ or other segments, depending on operating requirements.

CLICK BELOW TO PLAY THE VIDEO

System Specifications

Model	FOV	Resolution	Human Detection	Small Boat Detection
Pano 360 HD	360° × 36°	8800 × 900	670 m	2.6 km
Pano 180 HD	180° × 36°	4400 × 900	670 m	2.6 km
Pano 110 HD	110° × 32°	3600 × 900	750 m	2.9 km
Pano 180 SD	180° × 30°	2600 × 420	400 m	1.5 km
Pano 110 SD	110° × 30°	1800 × 420	400 m	1.5 km

Detection ranges based on Johnson Criteria (50% probability, 2 pixels on target). Human = 1.8 × 0.5 m; Small Boat = 7 × 2 m. Actual range varies with atmospheric conditions and other factors.

Thermal Camera & Payload Specifications
Thermal Camera
Sensor Type	LWIR (Long Wave Infrared)
Spectral Range	8 – 12 µm
Frame Rate	30 or 60 fps
Video Output Format	H.264 or H.265 — 1080p or 4K frame size
Payload
Weight	13 kg [29 lbs]
Dimensions	189 mm H × 486 mm W [5.7 in H × 19.1 in W]
Power
Voltage (Panoramic Array)	18 – 36 VDC
Voltage (CPU Module)	100 – 240 VAC
Max Power Consumption	120 W
Current AI — Object Detection Features
• Real-time detection and tracking • Near and far vessel detection • Range and bearing estimation • Horizon detection • Target list data streams • Non-AIS target alerts • Multiple integration points
