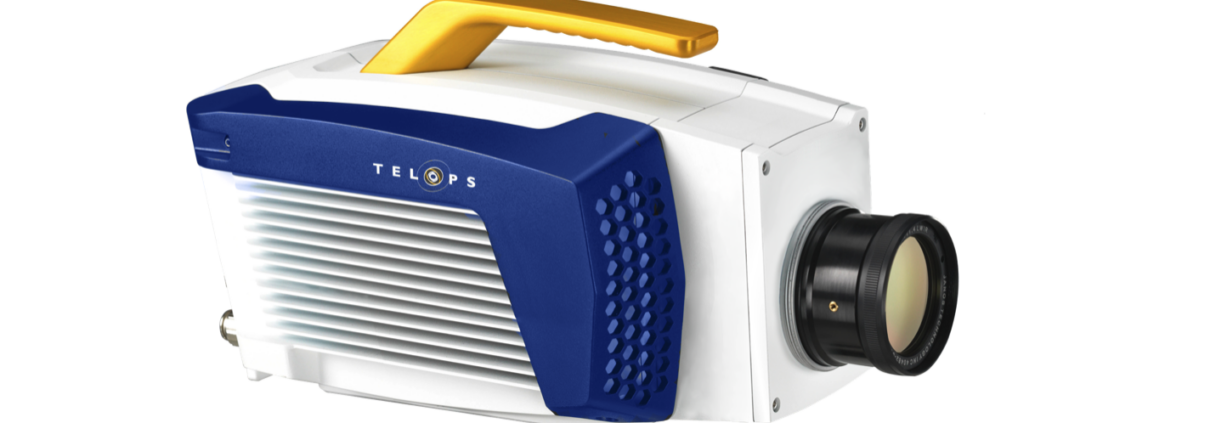

FAST M3S Super HD
The FAST M3S Super HD is the highest-resolution camera in the Telops FAST MWIR series, combining a 3-megapixel (1920 × 1536) cooled InSb focal plane array with the speed, sensitivity, and advanced feature set the FAST series is known for. Operating across a 1.5 – 5.4 µm spectral range with 30 mK thermal sensitivity, it delivers 113 Hz full-frame imaging and up to 2,570 Hz in subwindow mode — capturing the finest spatial detail of dynamic thermal events without sacrificing temporal resolution. Blackbody-free permanent radiometric calibration, automatic exposure control (AEC), enhanced high-dynamic-range imaging (EHDRI), and an optional 4-position rotating filter wheel make it an exceptionally versatile tool for IR signature measurement, experimental mechanics, non-destructive testing, heat transfer analysis, and aerospace research. An IP-67 sealed enclosure rated from –15 °C to +50 °C ensures reliable operation in demanding field and laboratory environments.
| Key Features |
|---|
| • 3-megapixel resolution (1920 × 1536) — the highest spatial resolution in the FAST MWIR series, 10 µm pixel pitch |
| • 113 Hz full frame / 2,570 Hz subwindow — exceptional frame rates at maximum resolution for stop-action capture of fast thermal events |
| • 30 mK thermal sensitivity — cooled InSb detector with Stirling cooler for outstanding detection of fine temperature gradients |
| • Blackbody-free permanent calibration — standard up to 150 °C; optional calibration up to 2,500 °C |
| • Automatic Exposure Control (AEC) & Enhanced High-Dynamic-Range Imaging (EHDRI) — standard on all configurations |
| • Fast-rotating 4-position filter wheel (optional) — for multispectral capture across distinct MWIR bands in a single camera |
| • Interchangeable lens system — standard, wide-angle, telephoto, and microscope lenses (1× – 4× magnification) |
| • IP-67 sealed enclosure — ruggedized for field operation from –15 °C to +50 °C |
| • Full integration with Telops RevealIR software — camera control, data acquisition, processing, and analysis in one platform |
System Specifications
| FAST M3S Super HD Specifications | |
|---|---|
| Detector | |
| Detector Type | Cooled InSb |
| Spectral Range | 1.5 – 5.4 µm |
| Resolution | 1920 × 1536 pixels (3 MP) |
| Pixel Pitch | 10 µm |
| Typical NETD | 30 mK |
| Detector Cooling | Stirling cooler |
| Frame Rates | |
| Full Frame (1920×1536) | 113 Hz |
| Max Subwindow | 2,570 Hz @ 64×2 |
| Radiometry | |
| Calibration | Blackbody-free permanent calibration |
| Standard Cal. Range | Up to 150 °C |
| Extended Cal. Range (opt.) | Up to 2,500 °C |
| Interface & Features | |
| Data Output | GigE, Camera Link, HD-SDI |
| Synchronization | GPS, IRIG-B |
| Internal Memory | 1 GB, 16 GB, or 32 GB |
| Filter Wheel (opt.) | Fast-rotating 4-position filter wheel |
| Software | Telops RevealIR |
| Mechanical & Environmental | |
| Dimensions (L×W×H) | 321 × 199 × 176 mm |
| Operating Temp. | –15 °C to +50 °C |
| IP Rating | IP-67 |
