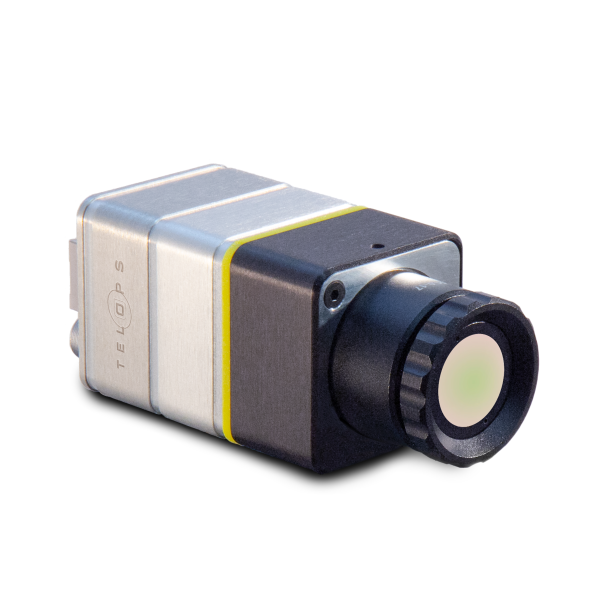

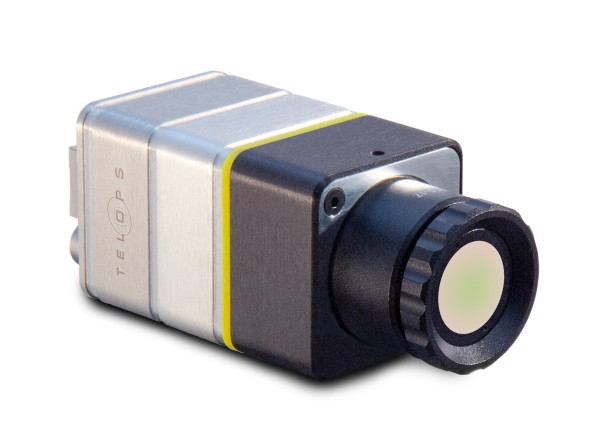

Radia V60 Uncooled LWIR Camera
The Radia V60 is a compact, uncooled long-wave infrared (LWIR) thermal camera designed to deliver exceptional image quality and reliable scientific data. Built around an uncooled microbolometer detector operating in the 8.0 to 14.0 µm spectral range, it combines permanent factory radiometric calibration with an interchangeable lens system — making precise, science-grade temperature measurement accessible to users of all experience levels.
| Key Features |
|---|
| • Ultra-compact & lightweight — 250 g, 45 × 45 × 75 mm |
| • Permanent radiometric factory calibration (no blackbody recalibration required) |
| • Interchangeable, user-swappable threaded optics |
| • GigE high-speed data transfer |
| • Compatible with Telops RevealIR acquisition & analysis software (license-free) |
System Specifications
| Parameter | Specification |
|---|---|
| Detector | |
| Detector Type | Uncooled Microbolometer |
| Spectral Range | 8.0 – 14.0 µm |
| Resolution | 640 × 480 pixels |
| NETD (Thermal Sensitivity) | 45 mK |
| Frame Rate | |
| Full Frame (640 × 480) | 60 Hz |
| Optics | |
| Lens Mount | Threaded, user-swappable |
| Standard Lens | 14 mm EFL — FOV: 30.7° × 23.2° |
| Wide-Angle Lens | 7.5 mm EFL — FOV: 54.2° × 41.9° |
| Telephoto Lens | 25 mm EFL — FOV: 17.5° × 13.1° |
| Radiometry | |
| High Sensitivity Range | 10 °C to 40 °C |
| Standard Range | -20 °C to 120 °C |
| Extended Range | 50 °C to 400 °C |
| High Temperature Range | Up to 1,100 °C |
| Output Units | Temperature, Radiance, or Irradiance |
| Interface & Software | |
| Data Interface | GigE (Gigabit Ethernet) |
| Readout Modes | RAW, NUC, RT, IBR, IBI |
| Software | Telops RevealIR — license-free (camera control, acquisition, processing & analysis) |
| Mechanical & Environmental | |
| Dimensions (L × W × H) | 45 × 45 × 75 mm |
| Weight | 250 g |
| Operating Temperature | -40 °C to +70 °C |
