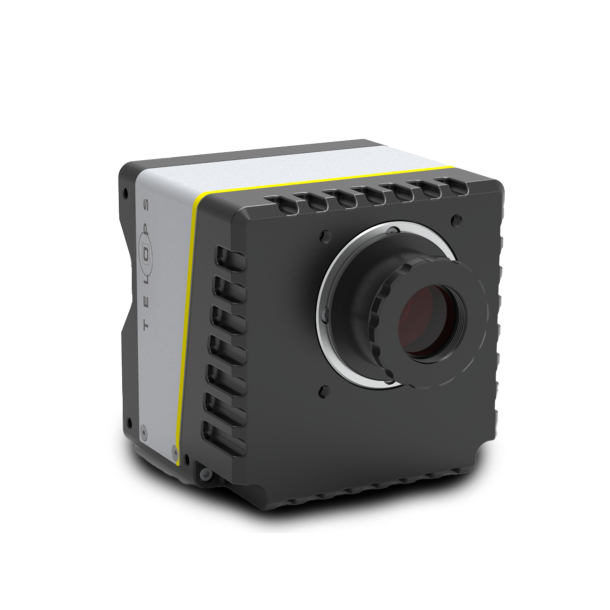

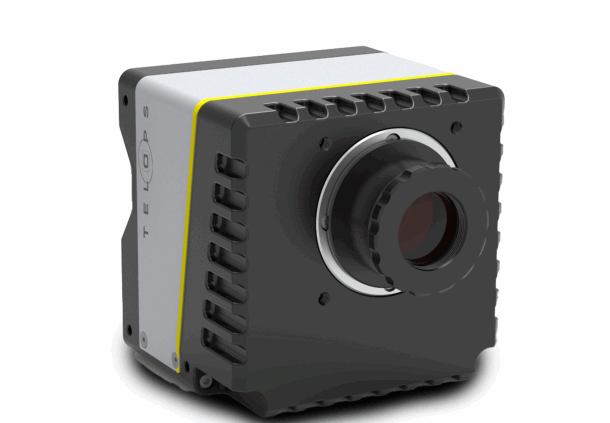

Radia M100 Cooled Scientific MWIR Camera
The Radia M100 is a cooled, small-form-factor thermal infrared camera designed to provide high-quality imagery and reliable scientific data. Real-time image acquisition capabilities are complemented by Telops permanent radiometric factory calibration, allowing the user to display the acquired imagery in units of temperature, radiance, or irradiance without the need for regular blackbody calibrations.
| Key Features |
|---|
| • Low size, weight & power (SWaP) — 820 g, 84 × 94 × 96 mm |
| • Permanent radiometric factory calibration (no blackbody recalibration required) |
| • Interchangeable, user-swappable threaded optics |
| • USB 3.0 high-speed data transfer |
| • Compatible with Telops RevealIR acquisition & analysis software |
System Specifications
| Parameter | Specification |
|---|---|
| Detector | |
| Detector Type | Cooled HOT MW SLS (Strained Layer Superlattice) |
| Spectral Range | 3.6 – 4.15 µm |
| Resolution | 640 × 512 pixels |
| Pixel Pitch | 10 µm |
| NETD (Thermal Sensitivity) | 30 mK |
| Frame Rates | |
| Full Frame (640 × 512) | 180 Hz |
| Subwindow (320 × 256) | 340 Hz |
| Subwindow (132 × 4) | 1,000 Hz |
| Optics | |
| Lens Mount | Threaded, user-swappable |
| Standard Lens | 25 mm EFL — FOV: 14.6° × 11.7° |
| Wide-Angle Lens | 13 mm EFL — FOV: 27.7° × 22.3° |
| Telephoto Lens | 50 mm EFL — FOV: 7.3° × 5.9° |
| Radiometry | |
| Standard Calibration Range | 0 °C to 850 °C |
| Extended Calibration Range | Up to 2,500 °C |
| Output Units | Temperature, Radiance, or Irradiance |
| Interface & Software | |
| Data Interface | USB 3.0 |
| Readout Modes | RAW, NUC, RT, IBR, IBI |
| Software | Telops RevealIR (camera control, acquisition, processing & analysis) |
| Mechanical & Environmental | |
| Dimensions (L × W × H) | 84 × 94 × 96 mm |
| Weight | 820 g |
| Operating Temperature | -20 °C to +55 °C |
