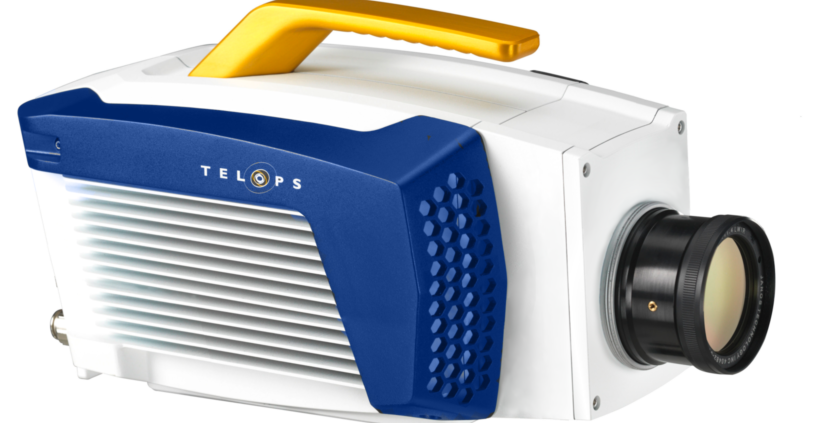

M700 HIGH DYNAMIC RANGE INFRARED CAMERA
The HDR M700 represents a revolution in high dynamic range infrared imaging. Traditional midwave infrared cameras can effectively measure a span of about 150 degrees with a single exposure time before experiencing image saturation. Telops HDR M700 utilizes an advanced on-chip saturation management solution to extend the single-exposure time dynamic range to a span of over 900 degrees enabling analysis of scenes and objects exhibiting strong thermal contrast.
HIGH DYNAMIC RANGE
24-bit architecture and advanced on-ship saturation management solution enable measurement of extremely wide temperature ranges in a single snapshot image. Traditional MW thermal cameras can typically measure a range of about 100-150 degrees in a single image using a single exposure time. The advanced design of the HDR M700 allows for a measurement range of approximately 900 degrees in a single exposure time snapshot, allowing for efficient and quantitative imaging of hot and cold objects simultaneously
TELOPS RTTC
Unique proprietary real-time processing of infrared images including NUC, radiometric temperature, inband radiance, and in-band irradiance. Blackbody-free calibration allows for full freedom over important image parameters including exposure time and window size without impacting radiometric accuracy. This advanced calibration protocol benefits users through increased ease of use and operational flexibility while maintaining radiometric performance and image quality througout the entire camera operating range.
| Key Features |
|---|
| • 900° dynamic range in a single exposure — 24-bit architecture and advanced on-chip saturation management enable simultaneous imaging of hot and cold targets without saturation |
| • 640 × 512 cooled SLS detector — 3.0–5.0 µm spectral range, 20 mK typical NETD, F/4 aperture |
| • 650 Hz full frame / 40,000 Hz max subwindow — high-speed imaging for dynamic thermal events |
| • Blackbody-free permanent calibration — standard up to 1,000 °C; optional up to 2,500 °C |
| • Telops RTTC — real-time processing including NUC, radiometric temperature, in-band radiance, and in-band irradiance |
| • Automatic Exposure Control (AEC) — standard; exposure time 1 µs to full frame rate |
| • High-speed internal memory buffer — up to 32 GB |
| • Full synchronization suite — Trigger In/Out, SDI, GPS, IRIG-B, RS-232, thermistor ports |
| • IP-67 sealed enclosure — ruggedized for field and lab environments; –15 °C to +50 °C operating range |
System Specifications
| HDR M700 Specifications | |
|---|---|
| Detector | |
| Detector Type | Cooled SLS (Strained Layer Superlattice) |
| Spectral Range | 3.0 – 5.0 µm |
| Resolution | 640 × 512 pixels |
| Aperture | F/4 |
| Typical NETD | 20 mK |
| Detector Cooling | Rotary-Stirling closed cycle |
| Frame Rates | |
| Full Frame (640×512) | 650 Hz |
| Maximum Frame Rate | 40,000 Hz (subwindow) |
| Exposure Time | 1 µs to full frame rate |
| High Dynamic Range | |
| Dynamic Range | 24-bit architecture; ~900 °C span in single exposure |
| HDR Range (standard) | 50 °C – 950 °C @ 120 µs |
| Radiometry | |
| Calibration | Blackbody-free permanent calibration |
| Standard Cal. Range | Up to 1,000 °C |
| Extended Cal. Range (opt.) | Up to 2,500 °C |
| Interface & Features | |
| Data Interface | GigE & Camera Link |
| Synchronization | Trigger In/Out, SDI, GPS, IRIG-B, RS-232, Thermistor |
| Internal Buffer | Up to 32 GB |
| Lens Mount | Threaded |
| Lock-In Recording | Optional |
| Mechanical & Environmental | |
| Dimensions (L×W×H) | 321 × 199 × 176 mm (12.6″ × 7.8″ × 6.9″) |
| Weight (w/o lens) | <7 kg |
| Operating Temp. | –15 °C to +50 °C |
| Storage Temp. | –35 °C to +60 °C |
| IP Rating | IP-67 |
