With a broad spectral response from 900nm to 2600nm, and the unmatched sensitivity of a cooled InSb sensor, the IRC906 SWIR camera is designed to address the most challenging applications for short wave infrared imagers. More versatile than traditional InGaAs cameras, the extended wavelength response of the IRC906- SWIR makes it indispensable for spectroscopy, infrared search and track, target signature, astronomy, laser detection & characterization, and other demanding SWIR imaging requirements. Based on digital focalplane technology, the 640×512 resolution IRC906 SWIR operates at frame rates of up to 120 Hz with cooled InSb sensitivity, low noise and no pixel crosstalk or blooming. The IRC906 features simultaneous 14-bit CameraLink and Gigabit Ethernet digital outputs, along with analog HDMI. GPS and IRG-B inputs are available as options.

CAMERA CAPABILITIES
• Broad spectral range < 900 nm - 2500 nm• Motorized four position warm filter wheel option
• 640 x 512 closed-cycle Stirling cooled InSb sensor• Simultaneous CameraLink, GigE & HDMI outputs
• 120 Hz full window frame rate• Optional IRIG and GPS data stamping

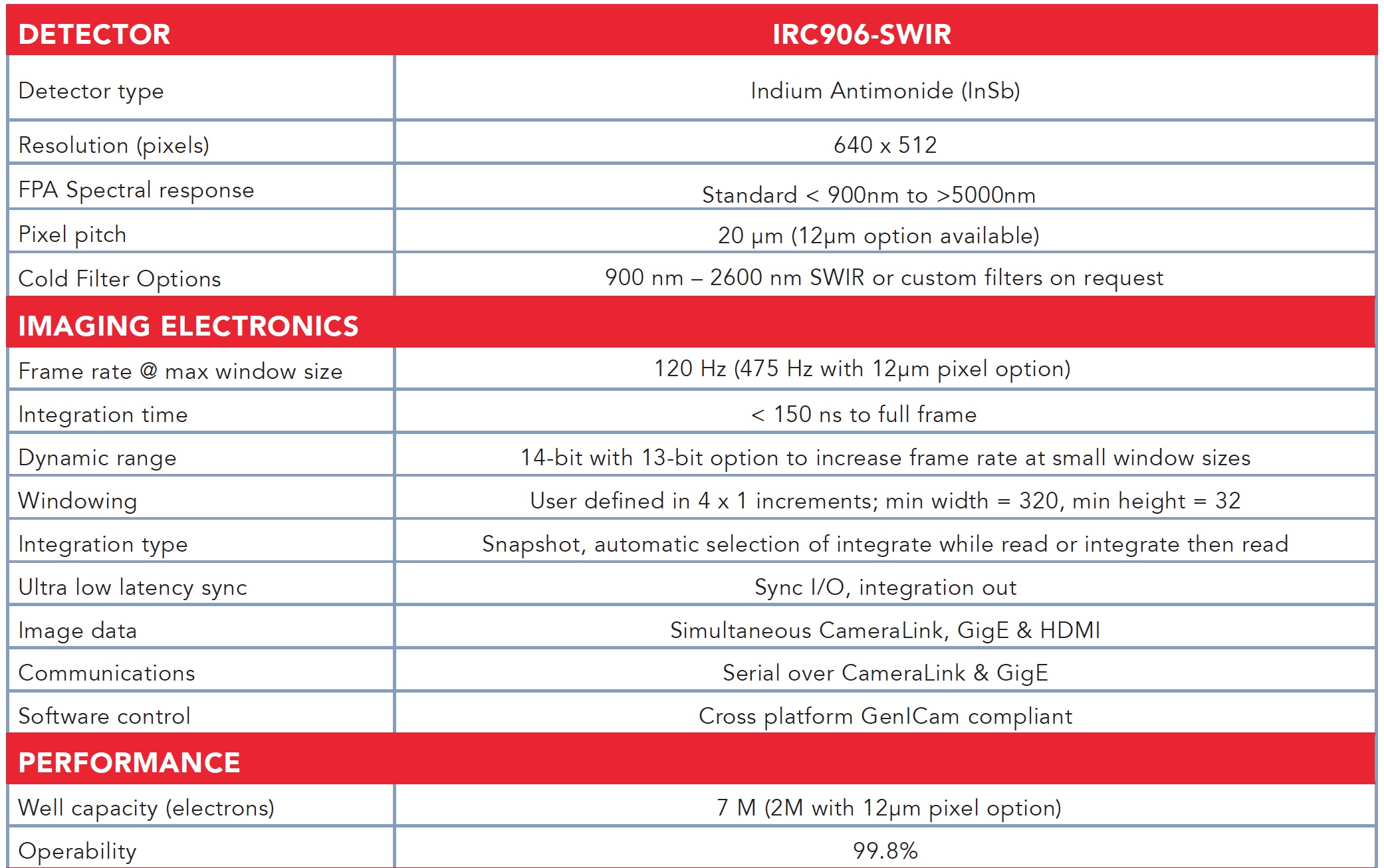

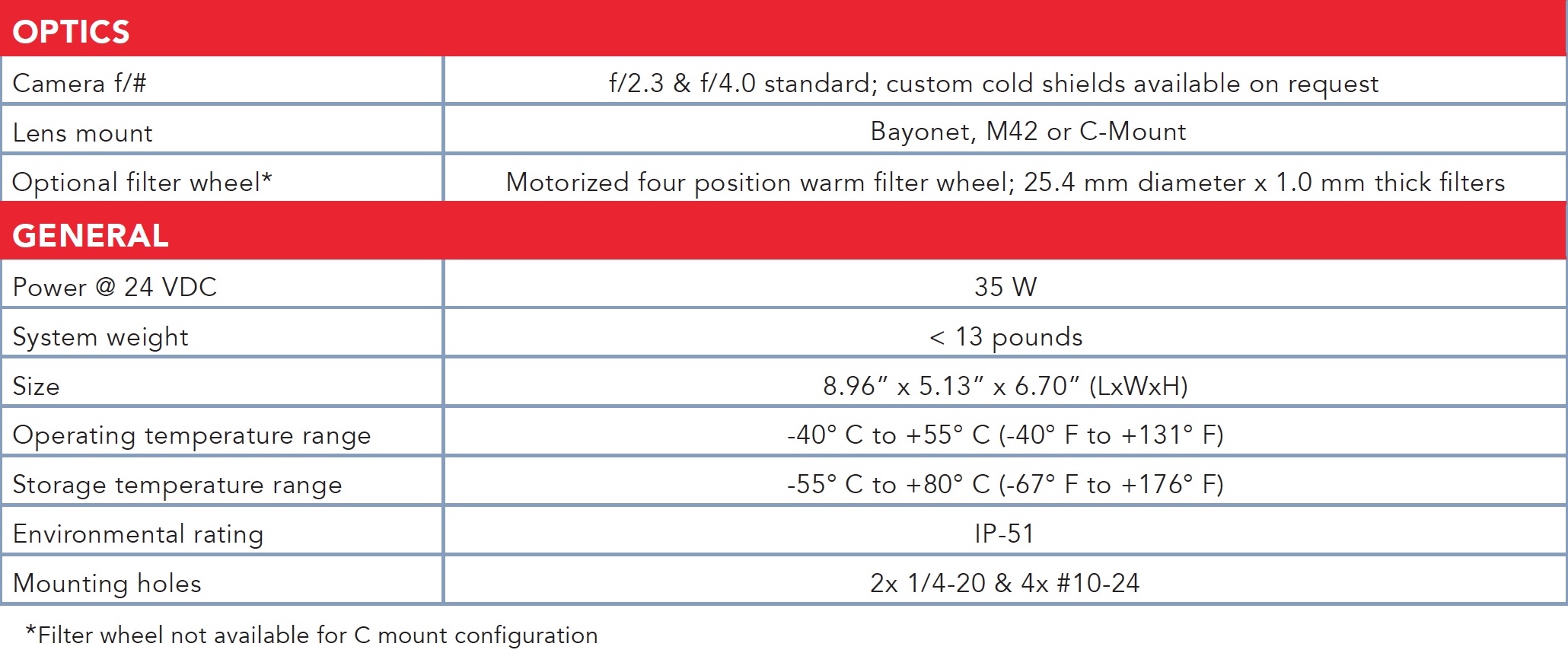

SYSTEM SPECIFICATIONS
