With a broad spectral response from 900nm to 2600nm and the unmatched sensitivity of a cooled InSb sensor, the IRC912 SWIR camera is designed to address the most challenging applications for shortwave infrared imagers. More versatile than traditional InGaAs cameras, the extended wavelength response of the IRC912- SWIR makes it indispensable for spectroscopy, infrared search and track, target signature, astronomy, laser detection & characterization, and other demanding SWIR imaging requirements. Based on digital focal plane technology, the 1280×1024 resolution IRC912 SWIR operates at frame rates of up to 120 Hz with cooled InSb sensitivity, low noise, and no pixel crosstalk or blooming. The IRC912 SWIR features simultaneous 14-bit CameraLink and Gigabit Ethernet digital outputs, along with analog HDMI. GPS and IRG-B inputs are available as options.

CAMERA CAPABILITIES
• Broad spectral range < 900 nm - 2500 nm• Motorized four position warm filter wheel option
• 1280 x 1024 closed-cycle Stirling cooled InSb sensor• Simultaneous CameraLink, GigE & HDMI outputs
• 120 Hz full window frame rate• Optional IRIG and GPS data stamping

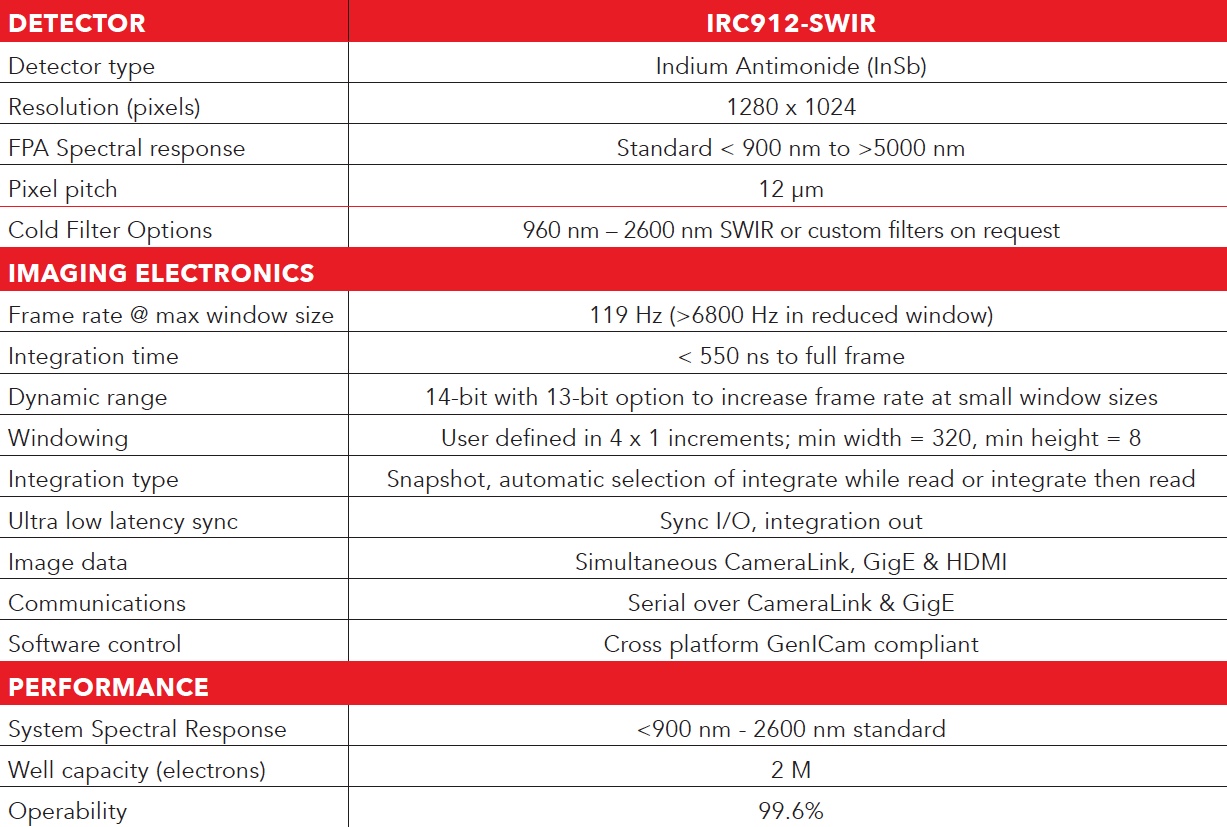

SYSTEM SPECIFICATIONS
