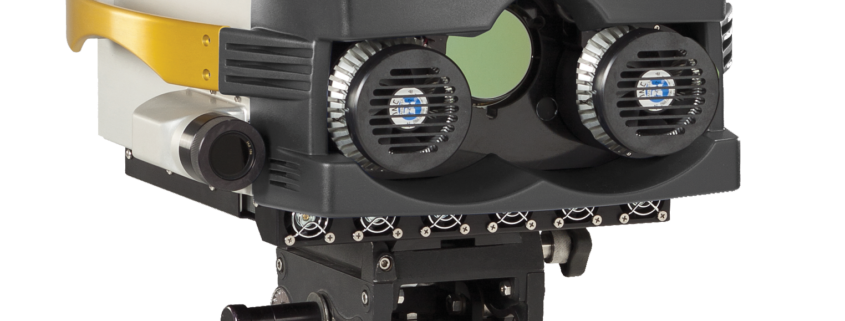

Hyper-Cam Methane
The Hyper-Cam Methane is a unique, high performance, thermal hyperspectral imaging camera for the detection and identification of methane (CH4) gas leaks and emissions. With the Hyper-Cam Methane, you can easily detect and identify methane gas at even very low concentrations and flow rates and acquire data which will allow you to visualize methane gas leaks and obtain a clear view of where leaks are located and where the gas is heading.
| Performance | |
|---|---|
| Detection lower limit | 1 ppm* |
| Flow rate lower limit | 2 litres/min. at 100 m** |
| PHYSICAL PROPERTIES | |
|---|---|
| Spatial resolution | 320 × 256 pixels |
| Field of view | 25.2° × 20.3° |
| Operating temperature | – 20°C to 40°C |
| Certification | IP42 |
| Size | 19 " x 19" x 10" |
| Weight | 31 Kg |
| Power consumption | 150 W |
* Sensitivity depends on gas cloud depth and temperature contrast assuming 200 ppm. m. K.
**Specifications are for illustrative purposes, actual results may vary depending on environmental conditions.
