The Princeton Infrared Technologies, Inc. SciCam series allows for the longest integration times and highest frame rate at Mpixel resolution in the SWIR!

This lattice matched InGaAs camera allows for high-resolution SWIR imaging 1280×1024 at high frame rates >93fps at full frame size. This small pitch array, 12µm, combined with the high quantum efficiency of the lattice-matched InGaAs arrays enables impressive imaging in the SWIR and visible band. The camera has the capability of four setpoints, 20C (no cooling), 0C (fan cooling), -40C, or -60C (water cooled) using a 3 stage TEC integrated into a vacuum package.

This advanced digital array (PIRT1280A1-12) onboard offers 14-bit digital output with low read noise of <45e- with no image lag, which is lower than every other cooled SWIR scientific camera on the market. This combined with the low dark current InGaAs and 3 stage TEC will enable high sensitivity imaging with very long integration times (>2 minutes). The camera features medium based Camera Link to allow for fast full frame rate imaging >93 frames per second at 1280×1024 at 14 bits. The InGaAs detector provides high quantum efficiency response in the shortwave infrared as well as in the visible with a response from 0.4µm to 1.7µm. The camera is packaged with software that to provide image display, acquisition and camera control. Excellent in high speed machine vision applications as well as microscopy where the small pitch long and integration times are advantageous.

CAMERA FEATURES
•1280x1024 resolution•Response from 0.4-1.7µm
•Small 12μm pitch•QE >75% from 1-1.6µm
•Multiple Temperature Setpoints: 20, 0, -40, and -60C•14-bit A/D on chip
•Snapshot exposure•Low Read Noise <45e-
•High frame rate >93fps at 1280x1024•Integration times from 50µs to >2 minutes
•High Dynamic Range >3000:1•F- and C-mount lenses available

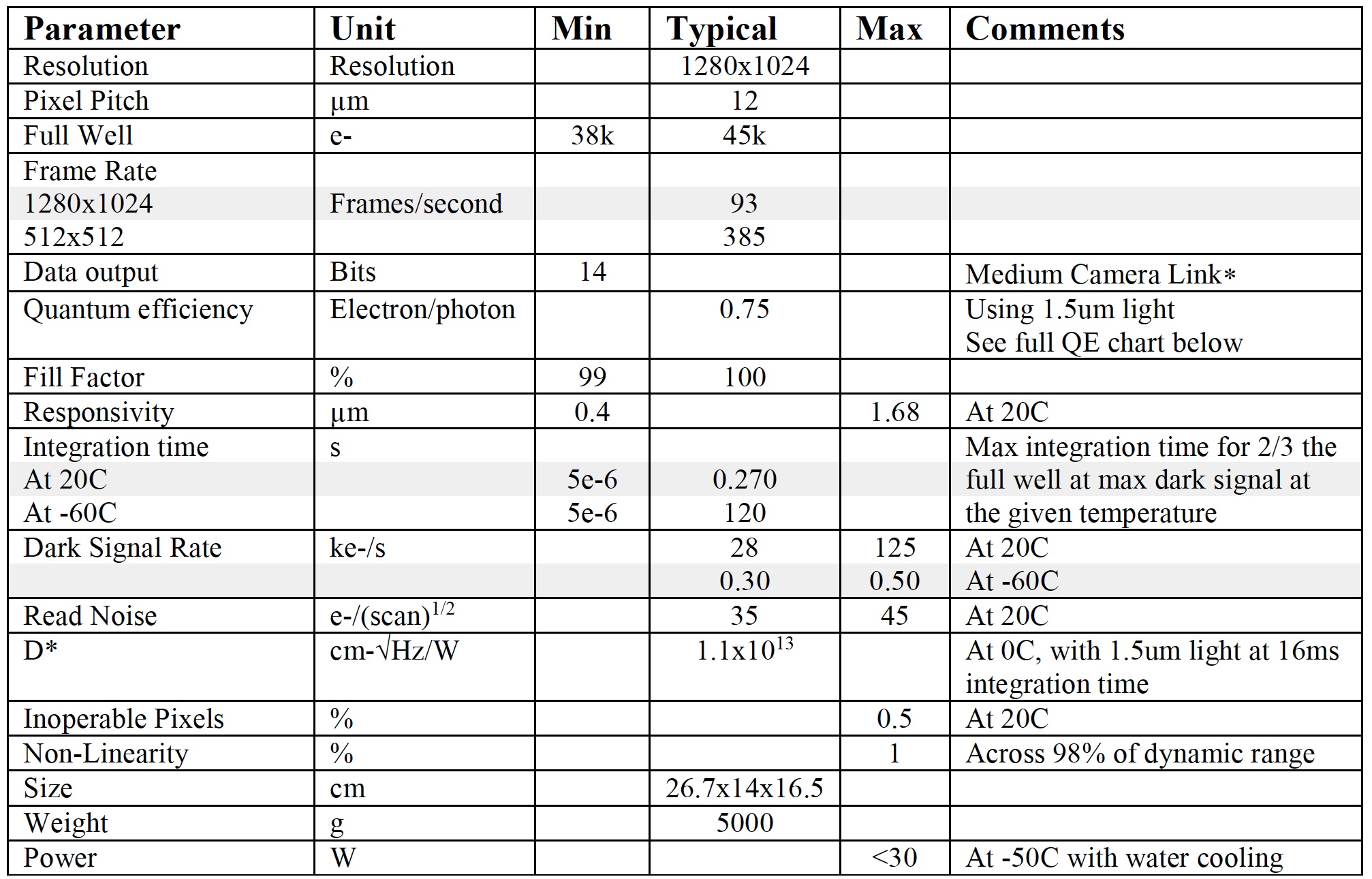

SYSTEM SPECIFICATIONS
